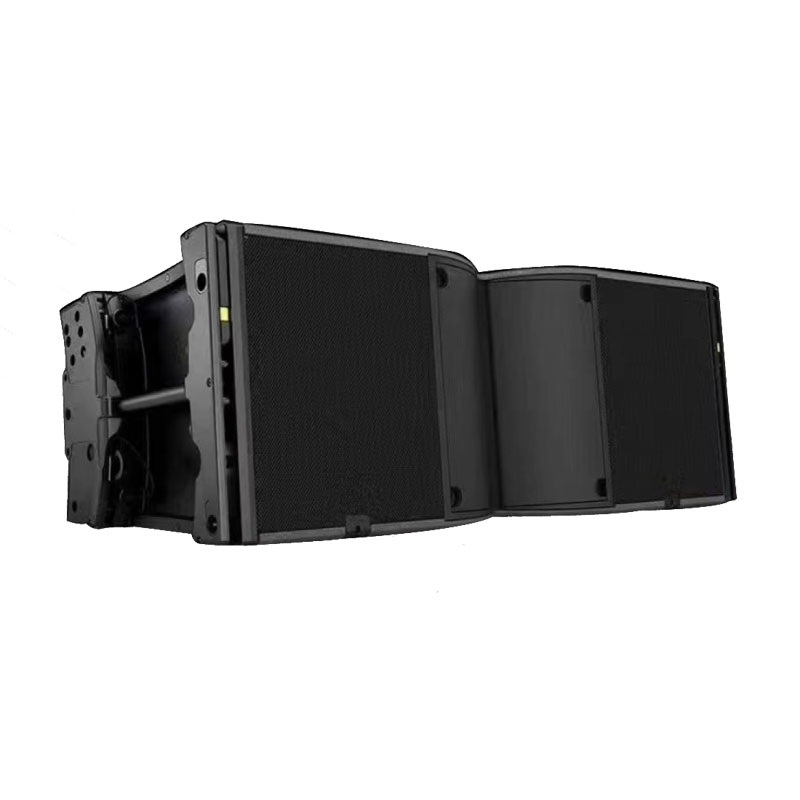

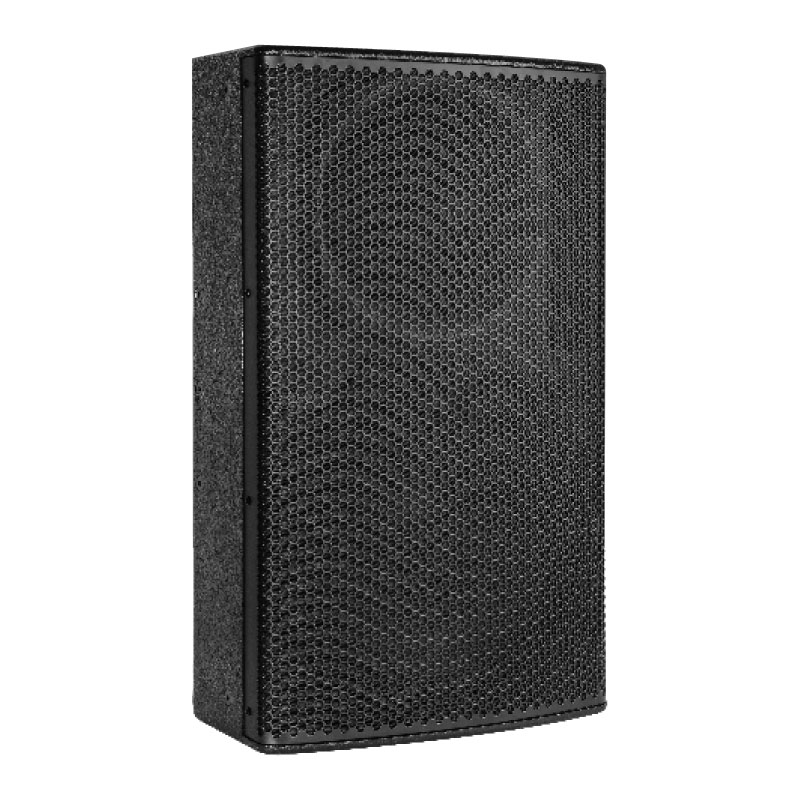

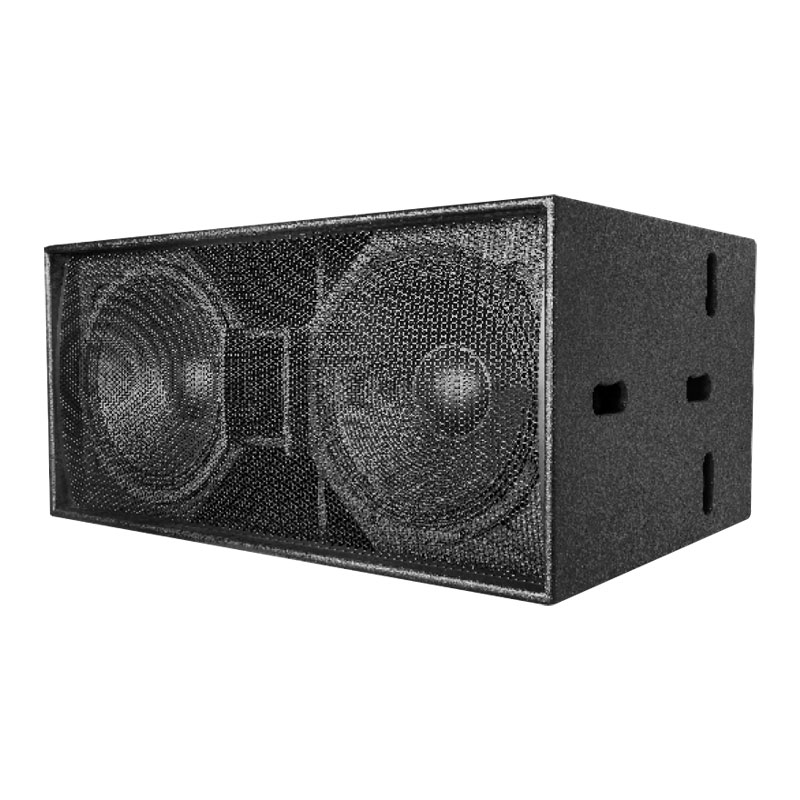

| Model | K3 | FA12 | FA15 | FA218 |
| Frequency response | 46Hz-20kHz(-6dB) | 60Hz-19KHz(-6dB) | 58Hz-19KHz(-6dB) | 32Hztocut(-6dB) |
|
Sensitivity
(1w@1m) |
97dB | 97dB | 97dB | 108dB |
| Rated impedance | 8Ω | 8Ω | 8Ω | 4Ω |
|
Maximum SPL(1m) |
136dB | 126dB(A) | 127dB | 141dB |
| rated power | 800W(AES) | 450W(AES) | 450W(AES) | 1500W(AES) |
| crossover point | 1.2KHz | 1.3KHz | 1.2KHz | / |
|
Coverage Pattern |
70°/110° symmetrical/90° asymmetrical | (horizontal × vertical) 90 degrees × 60 degrees | (horizontal×vertical)90°×60° | / |
| Dimensions (H x W x T) | 355x950x402mm | 348x630x320mm | 420x700x370mm | 1170x560x830mm |
| Net Weight | 43kg | 23kg | 26kg | 78kg |
| LF speaker | 2x12" Rubidium Magnet | 1x12" Ferrite | 1x15" ferrite | 2x18" Ferrite |
| HF speaker | 1x1.5" (100 cores) rubidium magnet | 1x1.4” (75 core) ferrite | 1x1.4" (75 core) ferrite | / |
| input connectors | 2xNL4MP | 2xNL4MP | 2xNL4MP | 2xNL4MP |
| Enclosure construction | 15mm birch plywood | 15mm birch plywood | 15mm birch plywood | 18mm birch plywood |
